Prefab Basic - Tap water cabinet with leakage indication

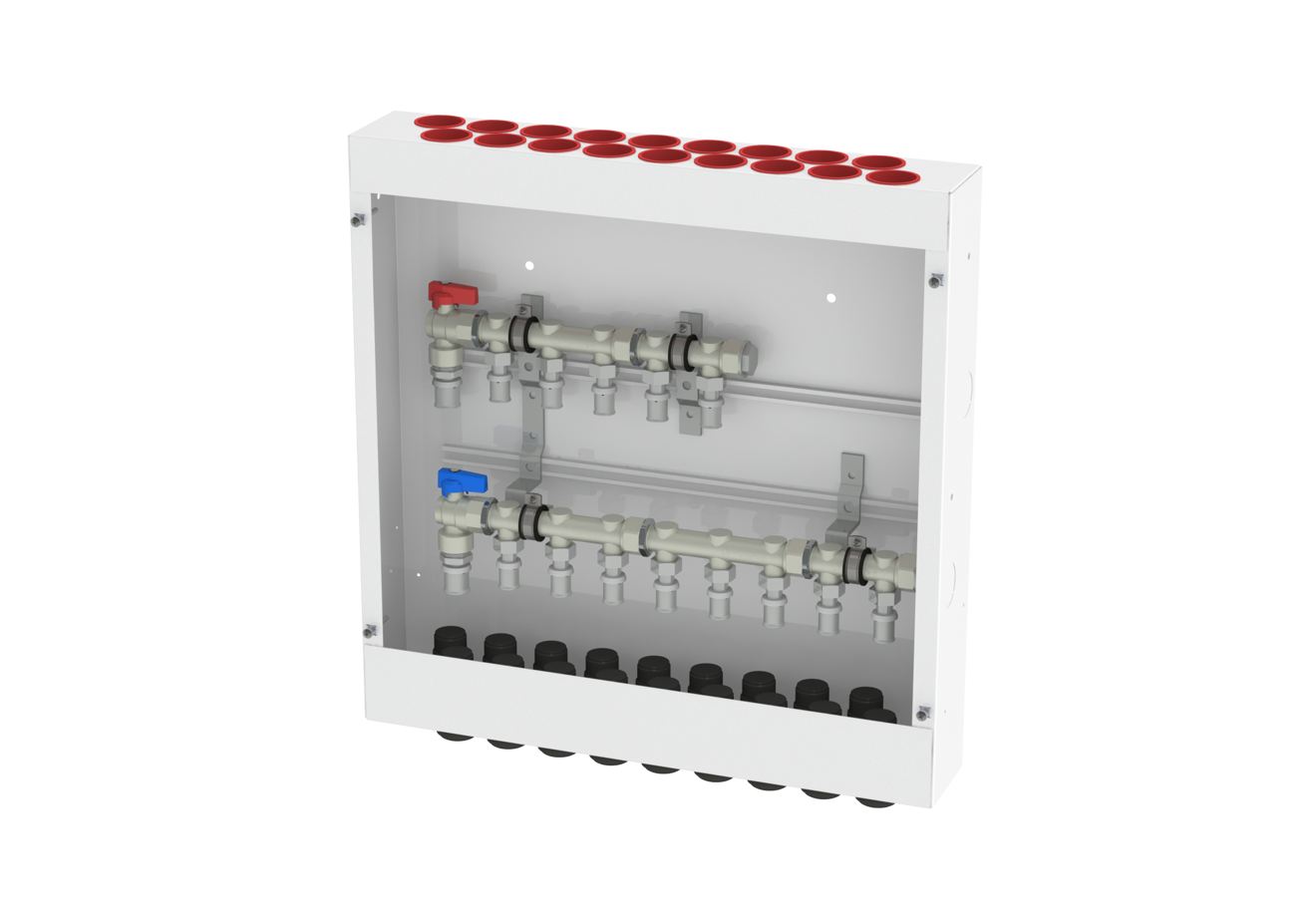

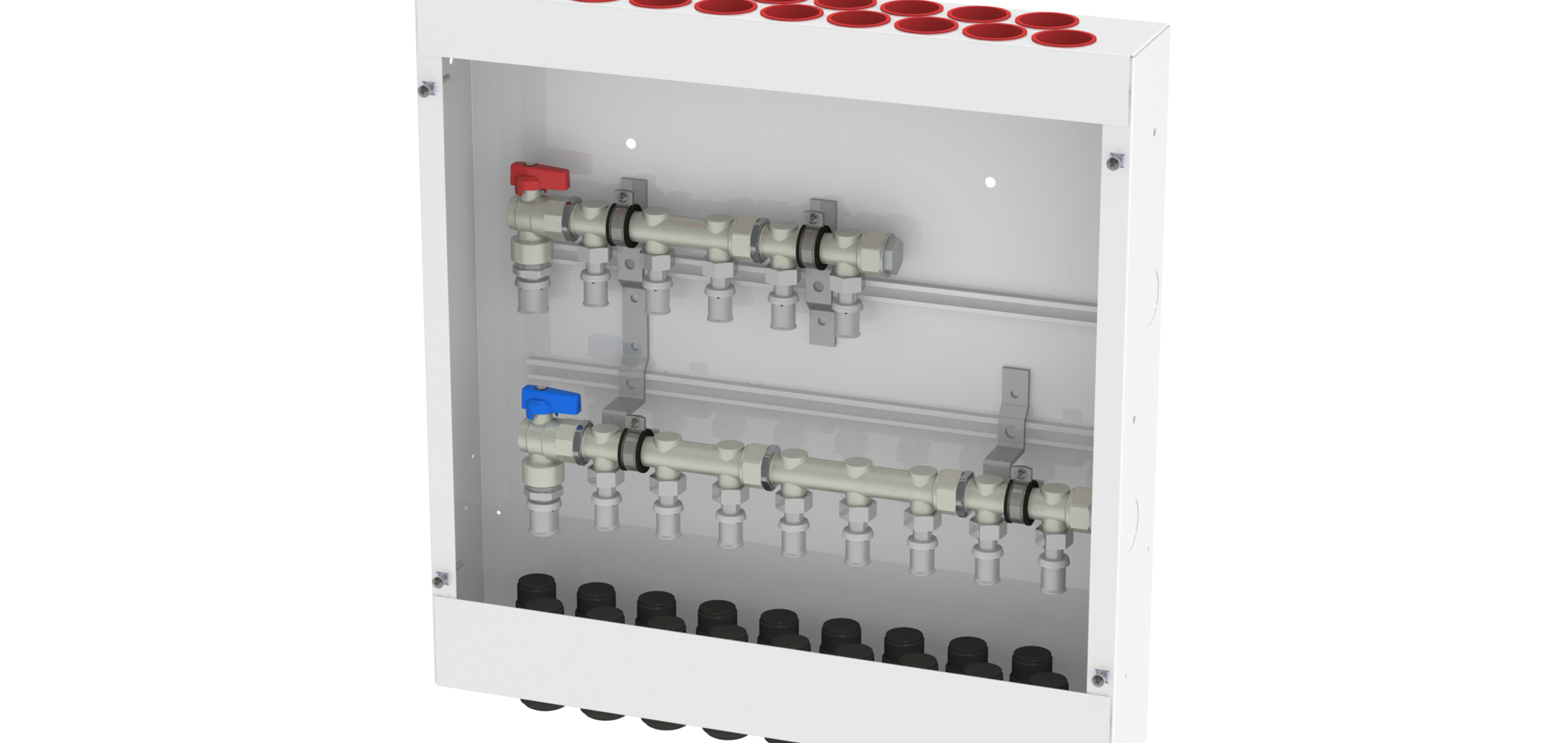

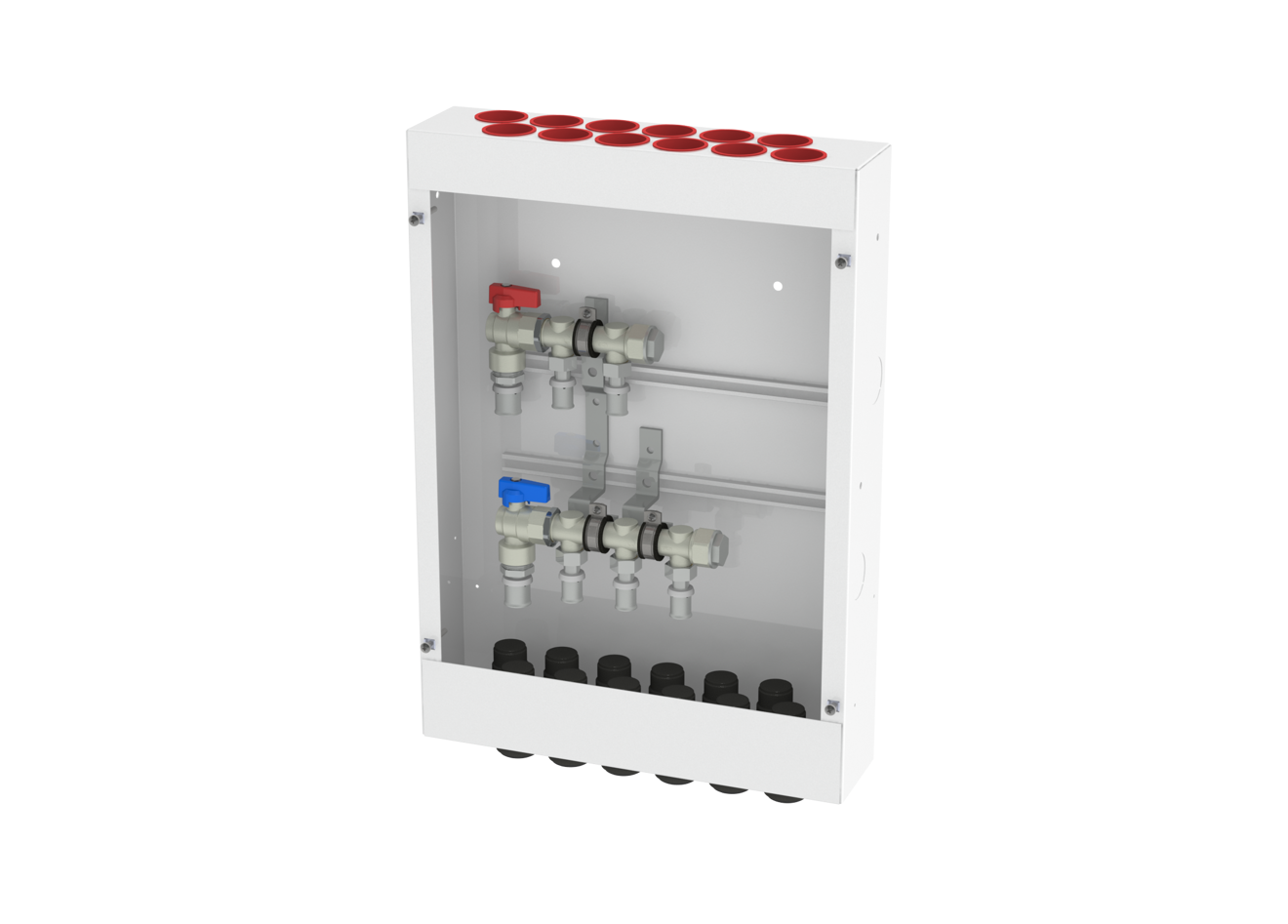

Prefabricated cabinet for tap water manifold with leakage indication. The cabinet is supplied with assembled manifold, ball valves and press fittings for connection pipes and supply pipes.
Prefab Basic - Tap water cabinet with leakage indication
Product features
The connections for supply pipes are located on the left of the cabinet. Number of connections and feed dimension according to the product list. Cover plates made of transparent plastic. Frame with hatch sold separately.
Up to 11 cold and 11 hot water loops.
COMPONENTS
- Manifold rods
- Ball valves
- Press fittings for connecting pipes and supply pipes
MEASUREMENTS CABINET
Width: 390 - 540 - 690 mm
Depth: 95 mm
Height: 550 mm
If necessary, Thermotech Prefab can be adapted. Contact your Thermotech Center to change the basic structure.
